A9D31625

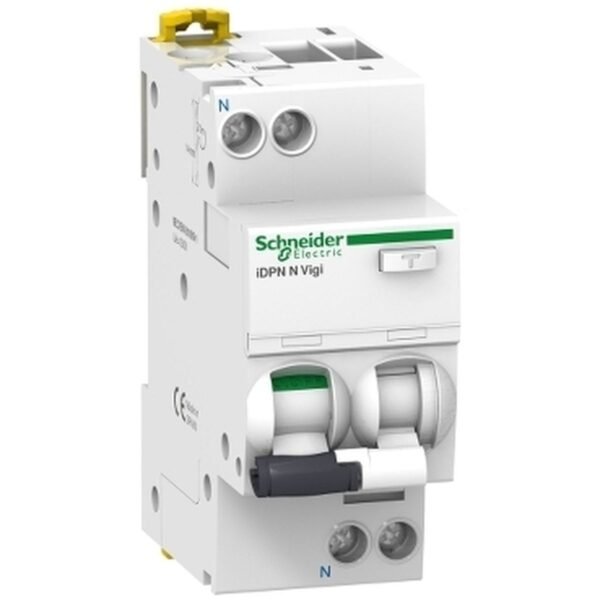

This Acti9 iDPN Vigi is a modular differential circuit breaker with overcurrent protection (RCBO). It is a 1P+N 1-pole protected circuit breaker, rated current 25A In and tripping curve C. The protection class against earth leakage is AC type with a sensitivity of 30mA. The differential protection time delay is instantaneous. The rated short-circuit breaking capacity Icn is up to 6000A according to EN/IEC 61009-2-1. This product protects against short circuits, overloading of cables, electric shocks by indirect contact and the risk of fire. Its ground fault indicator on the front panel allows rapid identification of the type of fault. A test push button is positioned on the front of the device to test that the product is operational. This product complies with standard EN/IEC 61009-2-1. It has an electrical endurance of up to 10000 cycles and a mechanical endurance of up to 20000 cycles. The operating voltage Ue is 220VAC to 240VAC. The rated insulation voltage Ui is 400VAC. The nominal impulse withstand voltage Uimp is 4kV. The frequency is 50Hz. It is DIN rail mountable. The 9 mm pitch width is 4. The product color is white (RAL9003). Dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. It has an IP20 degree of protection (according to standard IEC/EN 60529) and becomes IP40 once in a modular enclosure. The operating temperature is -5°C to 60°C. Storage temperature is -40°C to 85°C.
