A9R44425

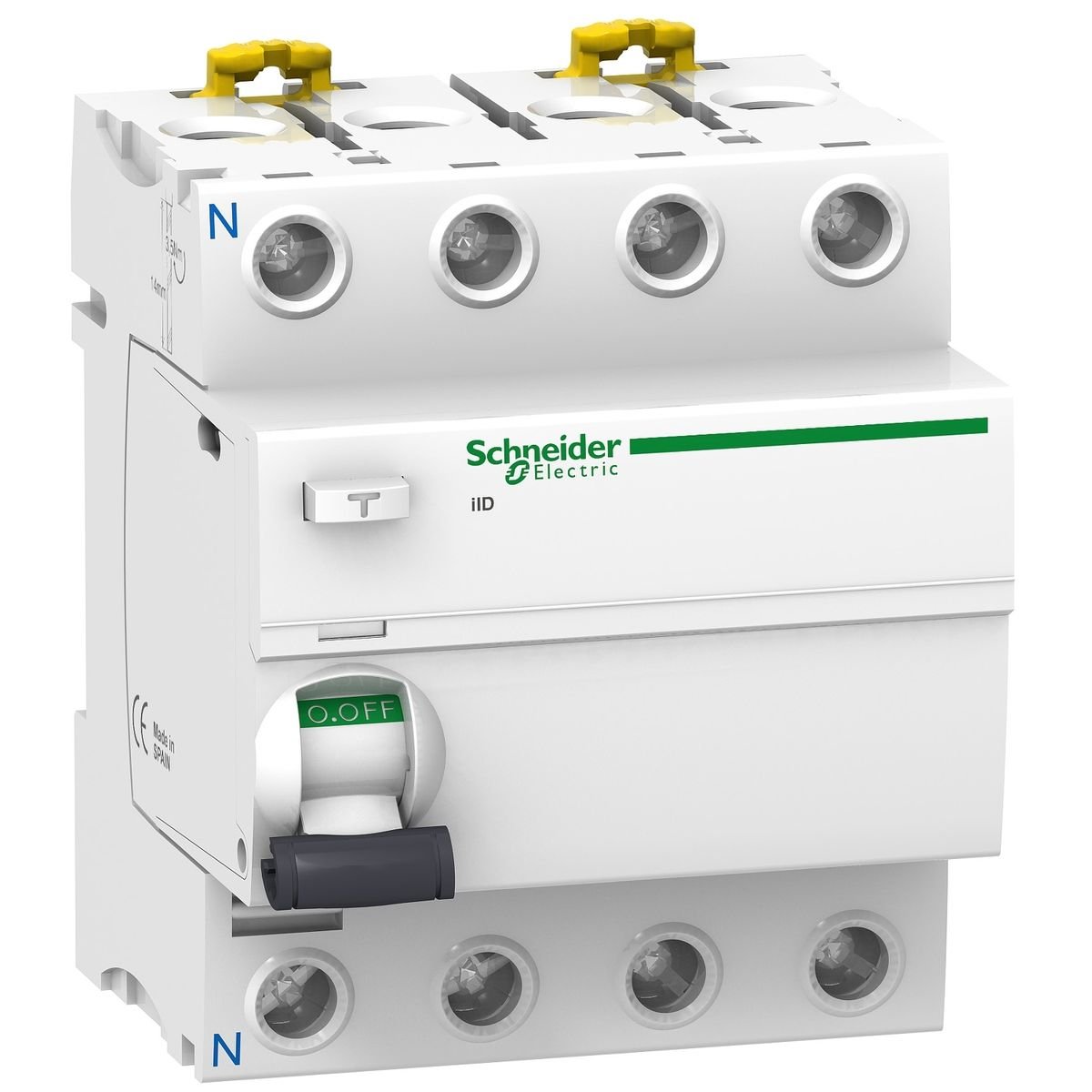

This Acti9 iID is a modular and reliable Residual Current Circuit Breaker (RCCB). It is a 4P circuit breaker with a rated current of 25A In, a sensitivity of 300mA with an AC type protection class. This product protects against electric shock by indirect contact and the risk of fire. It performs the function of disconnecting electrical circuits in the event of a ground fault. Its unique Visitrip indicator reduces intervention time by indicating the faulty device thanks to a mechanical indicator on the front panel. This product also has a VisiSafe window with a green band on the rocker indicating complete opening of the poles allowing downstream maintenance This product complies with standard EN/IEC 61008-1. The rated short-circuit breaking and making capacity (Im/IΔm) is 1500 A. The conditional rated short-circuit current (Inc/IΔc) is 10 kA. The mechanical endurance is up to 20000 cycles and the electrical endurance up to 15000 cycles. The operating voltage Ue is 380VAC to 415VAC. The nominal insulation voltage Ui is 500 VAC. The nominal impulse withstand voltage Uimp is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The 9 mm pitch width is 8. The product color is white (RAL9003). Dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37 kg. It has an IP20 degree of protection (according to standard IEC/EN 60529) and becomes IP40 once in a modular enclosure. The operating temperature is -5°C to 60°C. Storage temperature is -40°C to 85°C.
