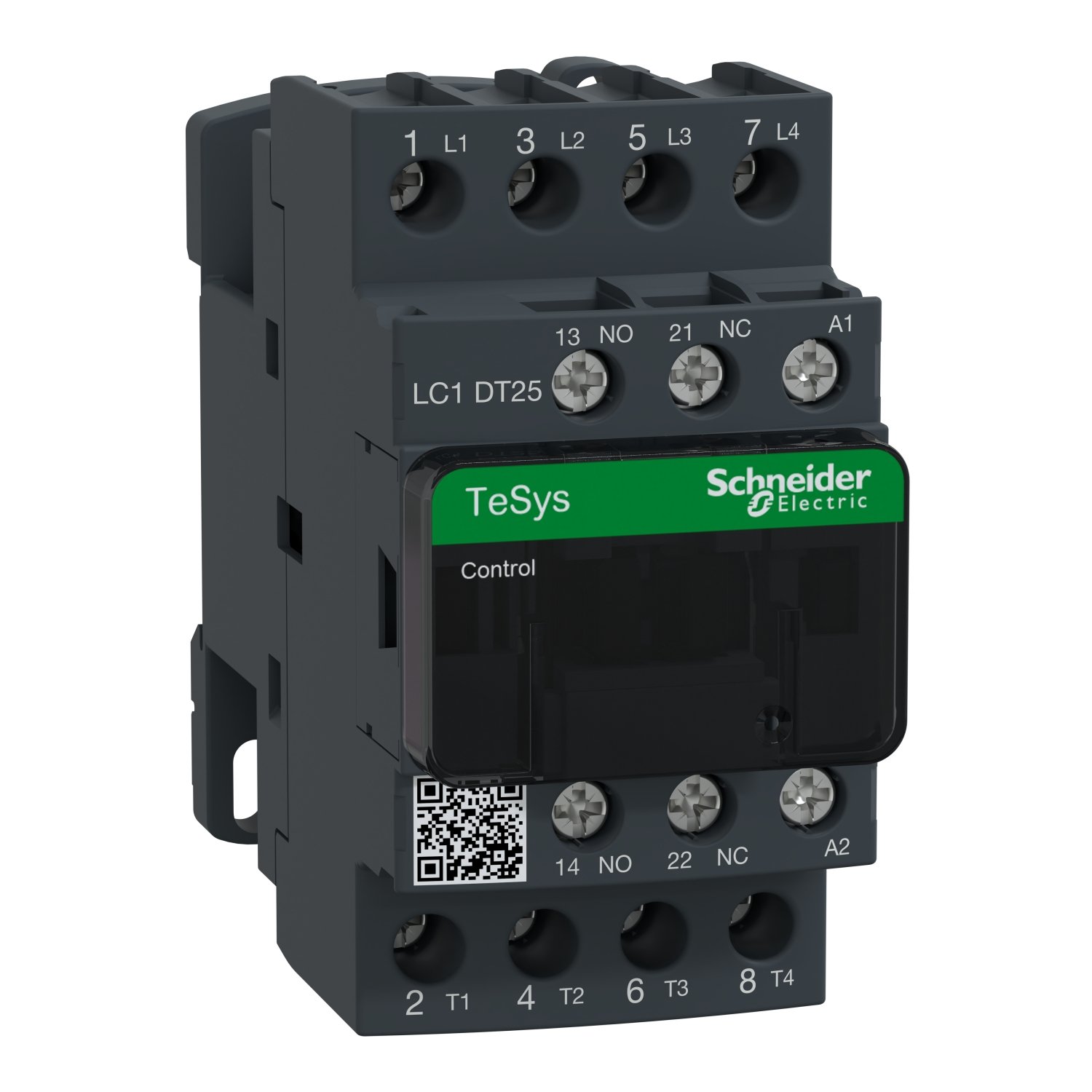

LC1DT25E7
TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 25 A – 48 V AC 50/60 Hz coil
Available on backorder
Add to Quote Basket
Choose all components required for your project
Request Quote
Our sales team works on your request to prepare a custom quote.
Get Quote in 24 Hours
We send you the best prices you can find in all of UAE within 24 hours.
Place the Order
Make your payment with direct bank transfer and place the order.
TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 25A/440V AC-1. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
LC1DT25E7
