LV525313
circuit breaker EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 4P 3d
Available on backorder
Add to Quote Basket
Choose all components required for your project
Request Quote
Our sales team works on your request to prepare a custom quote.
Get Quote in 24 Hours
We send you the best prices you can find in all of UAE within 24 hours.
Place the Order
Make your payment with direct bank transfer and place the order.

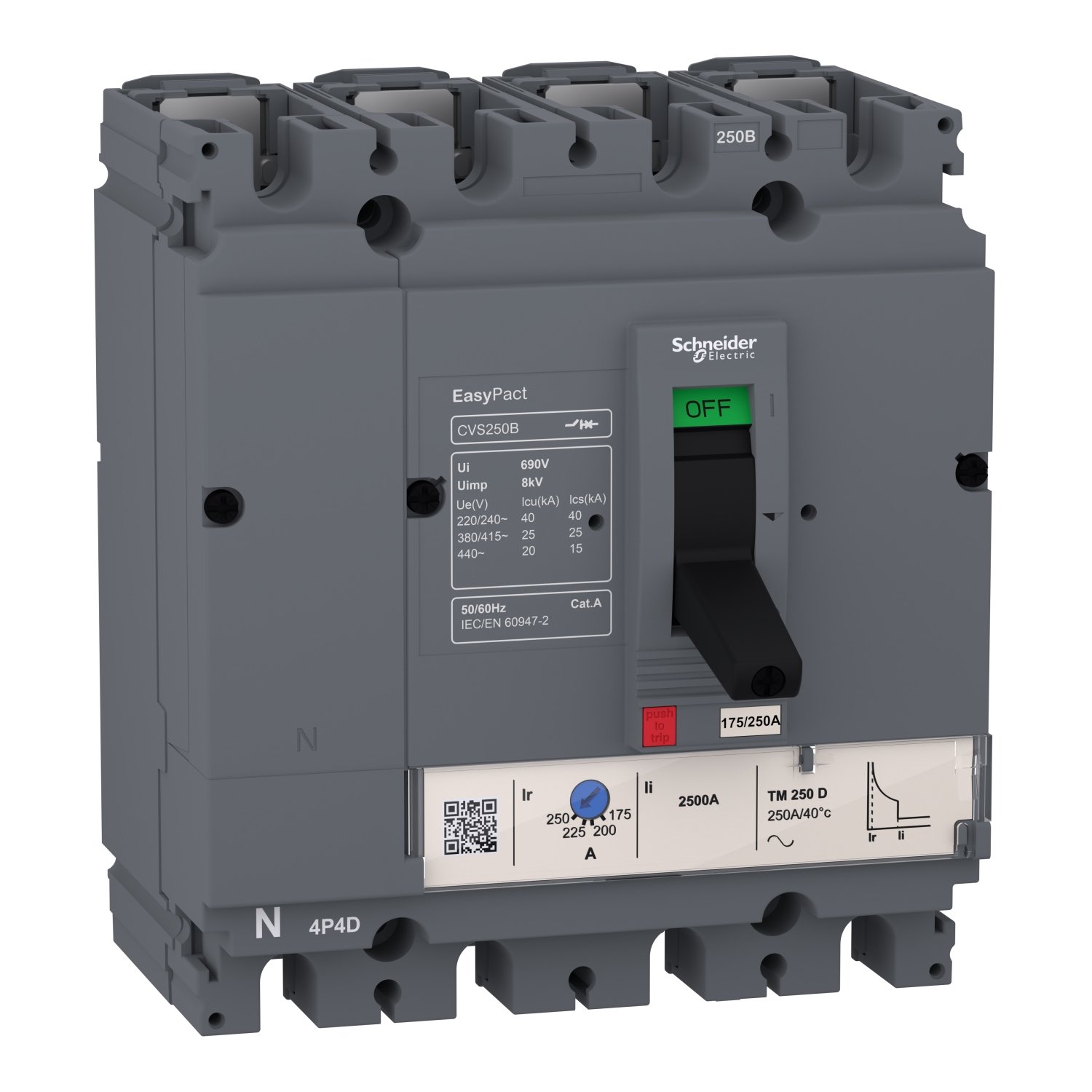

EasyPact CVS250B is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 250A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
LV525313
