TA10D4L0634TPE
active automatic transfer switch, TransferPacT Active automatic, 63A, 4P, LCD, frame 100A
Available on backorder
Add to Quote Basket
Choose all components required for your project
Request Quote
Our sales team works on your request to prepare a custom quote.
Get Quote in 24 Hours
We send you the best prices you can find in all of UAE within 24 hours.
Place the Order
Make your payment with direct bank transfer and place the order.

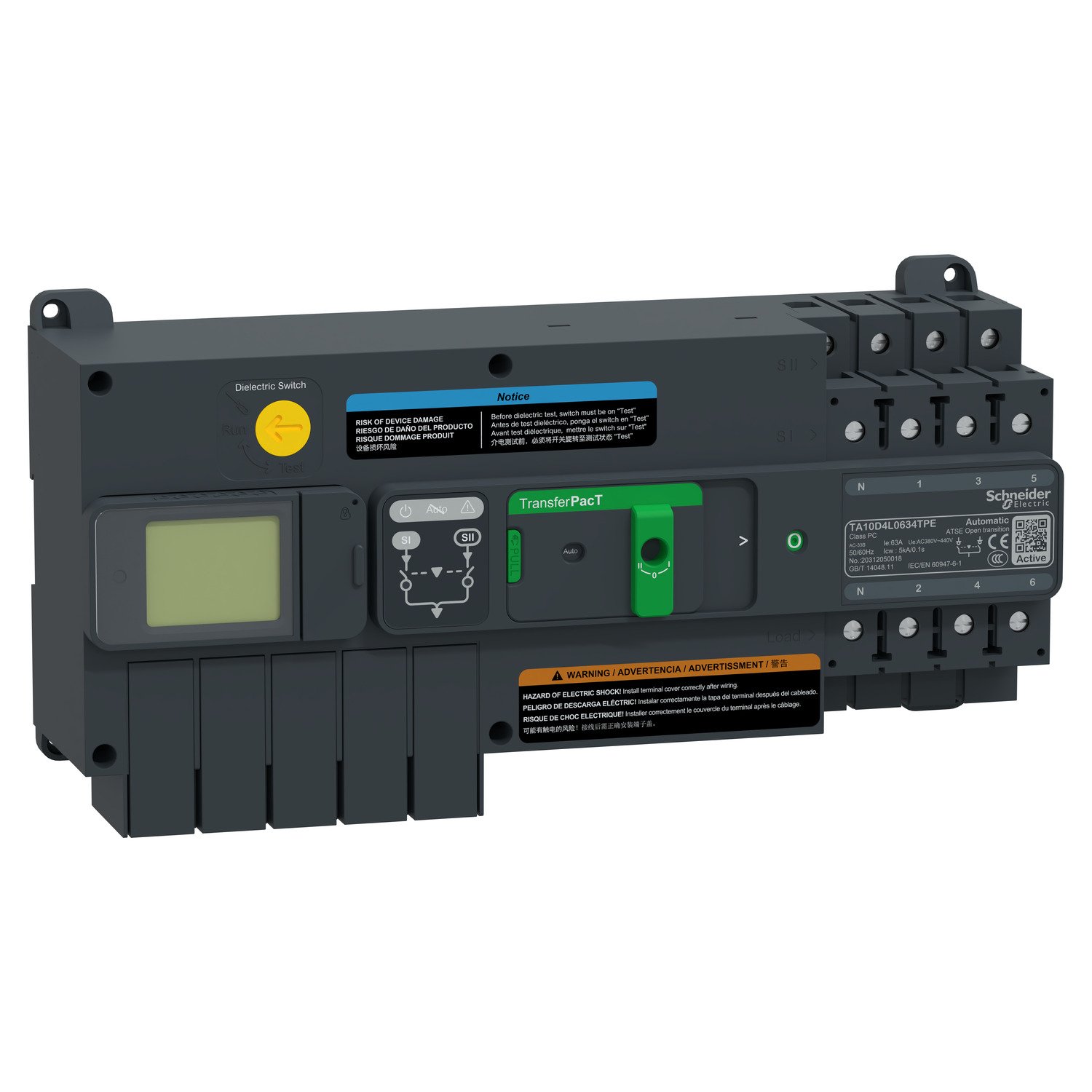

This TA10D4L0634TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 63A(Ie) at 60℃, with 32-100A frame. The front has a inbuit LCD display module which is used for displaying status and alarm setting, and control by push button. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the Din rail or plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 4poles version is 306mm(width)x145mm(height)x94.5mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.
TA10D4L0634TPE
